LED Layout Studio
Turn approved artwork into a buildable LED plan.
Calibrate supplied artwork, map Bounce LED modules to the real contours, size Mean Well power supplies and keep the production PDF, cost and quote detail with the job.
Artwork-aware placement

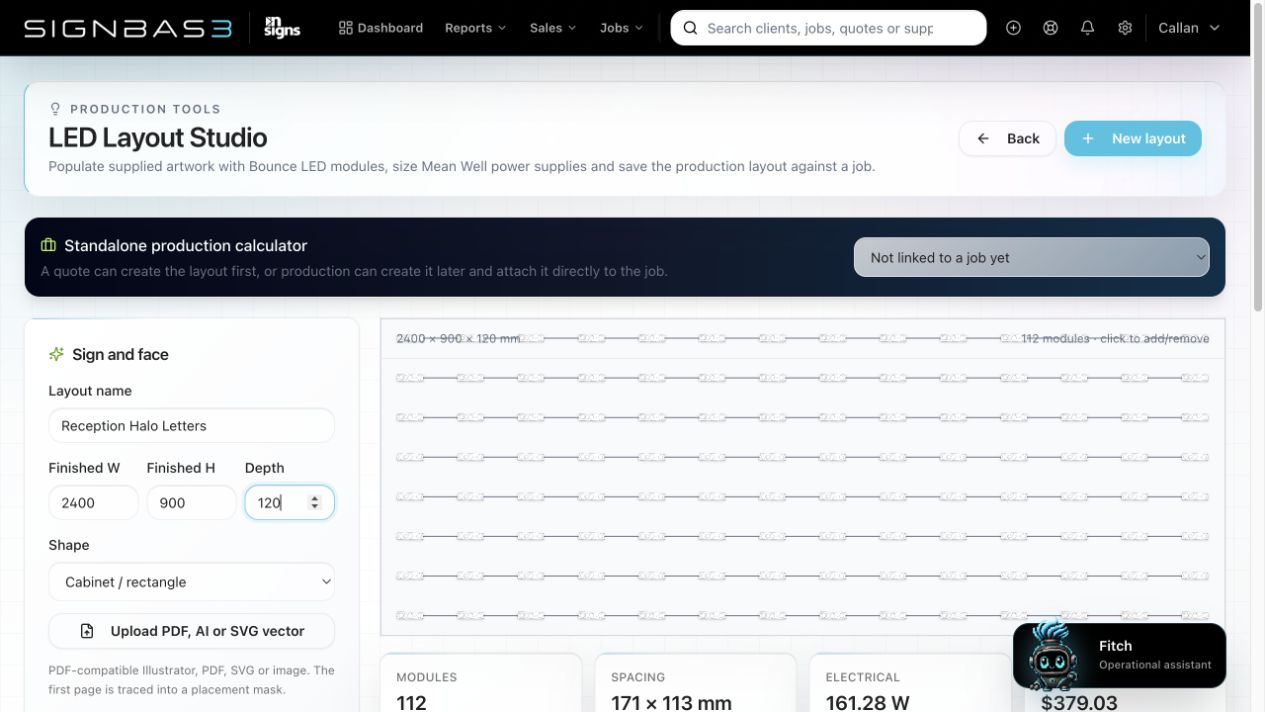

Upload PDF, AI, SVG or image artwork and trace the face into a placement mask at its finished size.
A complete illumination package
Calculate modules, spacing, watts, lumens, series limits, power supplies and wiring allowance.
Commercial detail that stays editable
Carry the supplier product code, internal cost and sell price into the quote and job instead of rebuilding the calculation.
A practical workflow
What it looks like in use.
- 01 · Bring in the face
Upload the supplied artwork or start from a cabinet, ellipse or triangle and confirm the finished dimensions and depth.
- 02 · Select the Bounce LED module
Choose from the built-in 24V families and check the recommended application, depth and spacing.
- 03 · Review the calculated layout
Inspect module positions, electrical load, Mean Well power-supply sizing, cost and sell price.
- 04 · Save the production pack
Attach the PDF to the job and use the product schedule to confirm the Bounce LED order.
